3. Fuel sensor (AD-X3)

cam_bien_nhien_lieu_AD_X3_EN_800X600

1. General information

  • Fuel sensor (AD-X3) is a specialized electronic device, combining with GPS Tracking Device (like Smart GPS Box TMS-T100) to monitor fuel consumption over time with accuracy up to 98%.
  • Fuel Sensor has become familiar with transport company in particular and personal vehicle users in general. Fuel Sensor (AD-X3) – is designed and produced by Anh Duong electronics and telecommunications joint stock company (ADSUN JSC). This is one of the top fuel sensors that are trusted by customers.
Let’s find out more about features, uses.







2. Technical model:

  • The sensor is defined as a device used to convert physical quantities and non-electrical quantities into measurable electric quantities. It is an important component in a measuring device or in an automatic control system.
  • AD-X3 fuel sensor operates on the principle of capacitive sensor: when there is a change in the amount of solvent in the fuel tank (added or removed), it leads to the change of resistance. Based on the built-in data set, the system will calculate the amount of fuel changed.
cam_bien_nhien_lieu_AD_X3_Chitiet_EN_800X600

2. Technical model:

  • The sensor is defined as a device used to convert physical quantities and non-electrical quantities into measurable electric quantities. It is an important component in a measuring device or in an automatic control system.
  • AD-X3 fuel sensor operates on the principle of capacitive sensor: when there is a change in the amount of solvent in the fuel tank (added or removed), it leads to the change of resistance. Based on the built-in data set, the system will calculate the amount of fuel changed.
cam_bien_nhien_lieu_AD_X3_Chitiet_EN_800X600

3. Features of AD-X3 fuel sensor

  • AD-X3 fuel sensor measures the current fuel level in the container, the measurement data will be transmitted to the server by the GPS tracking device. The device is researched and manufactured in accordance with the weather conditions in Southeast Asia, overcoming the deviation when the weather changes, the measurements are accurate up to 98%.
  • The use of AD-X3 fuel sensor will help vehicle owners / transport enterprises control fuel volume, fuel consumption of each vehicle and these figures are tracked online from the Admin WordPress or on smartphone application.
  • The chart shows the fuel consumption of vehicles that will help owners and business owners detect abnormalities of each vehicle and have appropriate treatment for business.
  • Besides, using AD-X3 fuel sensor also contributes greatly in changing thoughts, adjusting the behavior of those who directly participate in operating vehicles (drivers, machine operators…) when there is a technical tool to monitor what they do, it will demonstrate transparency in work which has been badly thought.

4. Illustration images for displayed result

Fuel reports are useful in tracking fuel consumption process of transport vehicles so that owners or businesses have timely management decisions…

  • The graph shows the normal operation of the vehicle
AD-X3-loiich-1
  • Monitoring actual fuel consumption according to distance: details of fuel consumption by distance, time selected – displayed according to the chart.
AD-X3-loiich-2
  • Fuel surges (added)

AD-X3-loiich-3
  • Fuel drops suddenly (sucks out)
AD-X3-loiich-5
  • In addition, a notice of fuel changes is also sent via: email, phone messages.
AD-X3-Email-SMS

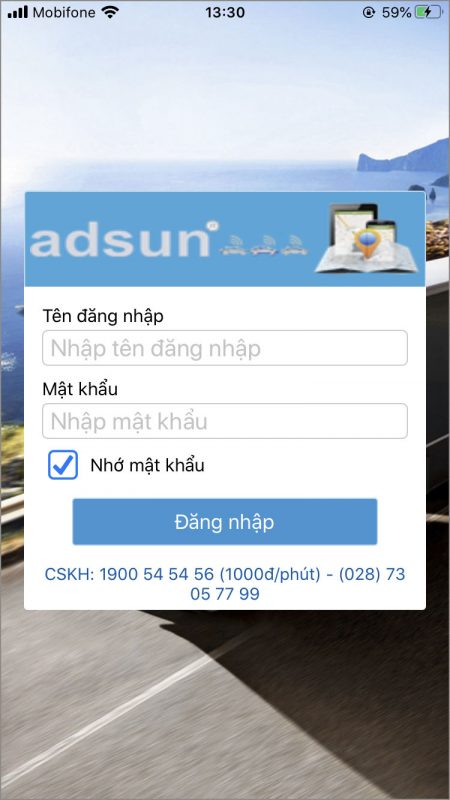

Login screen

AD-X3-phone-1

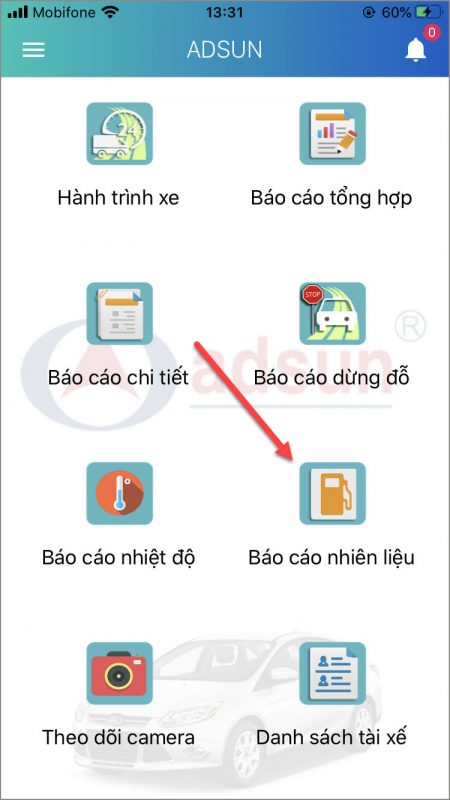

Management function

AD-X3-phone-2

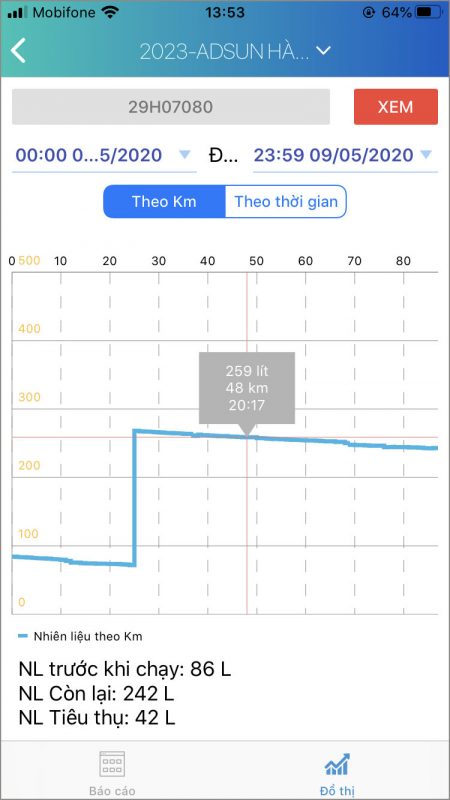

Chart according to the distance

AD-X3-phone-3

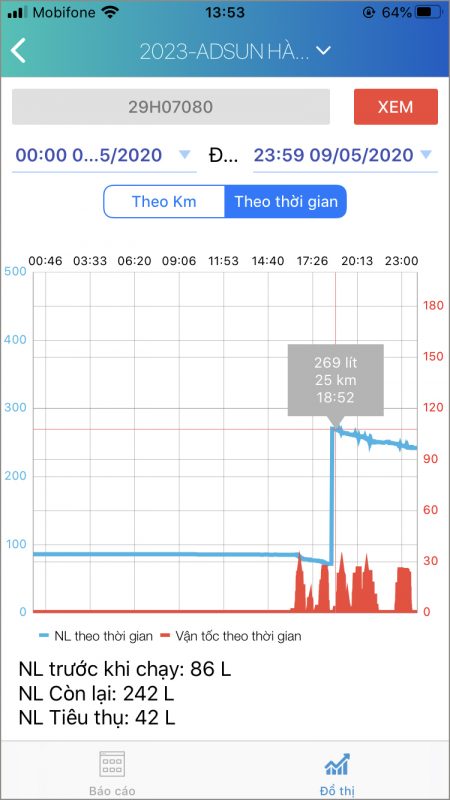

Chart over time

AD-X3-phone-4
