2. Adsun AD-M2

AD_M2_800x600_01

1. General information

If you are in need of installation of navigation equipment for vehicles (business or family) ADSUN, we would like to explain more clearly about this issue.

  • For transport means in service of business:
  • It is required to install cruise control equipment as prescribed by the Ministry of Transport.
  • The information from the cruise control device must be stored and transferred to the authorities – upon request for inspection.
  • Meet these requirements you can consult our ADSUN product information – standard location: Adsun TMS T100







  • However, the cases are not required by the Ministry of Transport For example: family cars, motorcycles, vehicles needing to add navigation devices … for the purpose of tracking the journey, protecting property. We would like to introduce more AD-M2 positioning products with the following characteristics:
    • Fully meet features such as location monitoring, speed, journey…
    • Information and reports are stored for up to 6 months on our data server system.
    • The quality of the equipment is guaranteed and the warranty and maintenance are in accordance with the company standard.
    • The difference is:
      • Price is lower than standard positioning
      • Integrating a number of additional functions on property protection
      • Journey information is not transmitted to the authorities.
AD_M2_800x600_01

1. General information

If you are in need of installation of navigation equipment for vehicles (business or family) ADSUN, we would like to explain more clearly about this issue.

  • For transport means in service of business:
  • It is required to install cruise control equipment as prescribed by the Ministry of Transport.
  • The information from the cruise control device must be stored and transferred to the authorities – upon request for inspection.
  • Meet these requirements you can consult our ADSUN product information – standard location: Adsun TMS T100

However, the cases are not required by the Ministry of Transport For example: family cars, motorcycles, vehicles needing to add navigation devices … for the purpose of tracking the journey, protecting property. We would like to introduce more AD-M2 positioning products with the following characteristics:

  • Fully meet features such as location monitoring, speed, journey…
  • Information and reports are stored for up to 6 months on our data server system.
  • The quality of the equipment is guaranteed and the warranty and maintenance are in accordance with the company standard.
  • The difference is:
  • Price is lower than standard positioning
  • Integrating a number of additional functions on property protection
  • Journey information is not transmitted to the authorities.

2.Detailed AD-M2 positioning feature

    • Anti-theft feature – When the car vibrates, unlocks, the device will activate anti-theft by:
    • Howling sirens
    • Disconnect the engine from the engine
    • Text alerts to vehicle owners (by text, or on the app)
    • Remote shutdown: in case of robbery with the remote shutdown feature (when vehicle speed is less than 15km / h) – when activating this feature, the engine will be turned off and the engine will not start again.
    • Other utilities
    • View the current position of the vehicle: see where the vehicle is, indicating whether the vehicle is stopped, how long it is parked or how fast the vehicle is moving.
    • Review the itinerary: record the journey of a vehicle on google map online and store it on sever adsun.
    • The route data when disconnected, will be sent back to the server after the device works again.
    • Vehicle monitoring positioning feature
    • Find your car in the park: howling or flashing lights when calling to equipment.
    • Warning over speed.
    • Warning vehicles out of pre-set areas
    • There is a backup battery when the power is turned off.
    • Have an easy-to-use Vietnamese mobile tracking app.
    • Accu status alerts, weak power alerts by software, by phone message.
    • Auto power off when battery is low

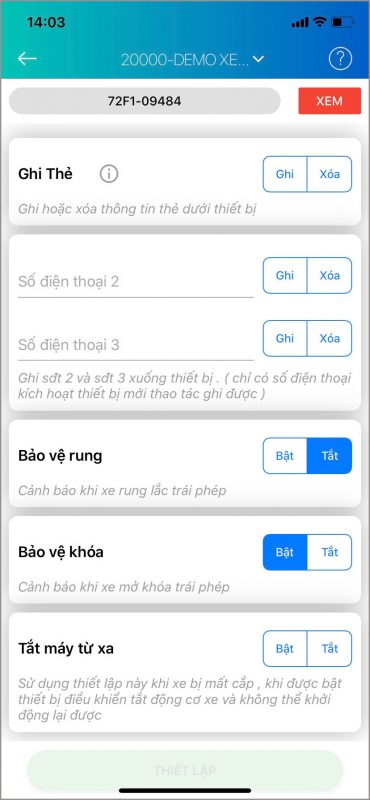

Setting screen of functions

Pic-Config-AD-M2

2.Detailed AD-M2 positioning feature

  • Anti-theft feature – When the car vibrates, unlocks, the device will activate anti-theft by:
  • Howling sirens
  • Disconnect the engine from the engine
  • Text alerts to vehicle owners (by text, or on the app)
  • Remote shutdown: in case of robbery with the remote shutdown feature (when vehicle speed is less than 15km / h) – when activating this feature, the engine will be turned off and the engine will not start again.
  • Vehicle monitoring positioning feature
  • View the current position of the vehicle: see where the vehicle is, indicating whether the vehicle is stopped, how long it is parked or how fast the vehicle is moving.
  • Review the itinerary: record the journey of a vehicle on google map online and store it on sever adsun.
  • The route data when disconnected, will be sent back to the server after the device works again.
  • Other utilities
  • Find your car in the park: howling or flashing lights when calling to equipment.
  • Warning over speed.
  • Warning vehicles out of pre-set areas
  • There is a backup battery when the power is turned off.
  • Have an easy-to-use Vietnamese mobile tracking app.
  • Accu status alerts, weak power alerts by software, by phone message.
  • Auto power off when battery is low







Setting screen of functions

Pic-Config-AD-M2

3. Technical model

    • Model: AD-M2
    • Dimensions: DxRxC (83x52x18) mm
    • Weight: 60g
    • GSM band: 850/900/1800 / 1900MHz
    • Operating temperature: From 50c to 800C
    • Storage temperature: 250C
    • Data memory: Save 1000 messages when the device loses GPRS connection.
    • Battery backup
    • Data transmission: vehicle running: 10 seconds / time, vehicle stopped: 20 minutes / time, sleep mode (the engine does not shake): 20 minutes / time

3. Technical model

  • Model: AD-M2
  • Dimensions: DxRxC (83x52x18) mm
  • Weight: 60g
  • GSM band: 850/900/1800 / 1900MHz
  • Operating temperature: From 50c to 800C
  • Storage temperature: 250C
  • Data memory: Save 1000 messages when the device loses GPRS connection.
  • Battery backup
  • Data transmission: vehicle running: 10 seconds / time, vehicle stopped: 20 minutes / time, sleep mode (the engine does not shake): 20 minutes / time

4. Imagines of website and mobile app interface

Website and App for AD-M2 are applied with the most modern programming technology so it has a completely new interface – providing full of journey management information for vehicle owners, body interfaces. friendly, clear images, fast access speed…

Website interface for tracking vehicle information or each vehicle.

AD-M2-Map-01

Track vehicle journey information: time, location, speed …

AD-M2-Map-02

The software system provides a lot of reports for transportation activities.

AD-M2-Map-03

AD-M2 positioning has apps on iOS & Android so users can track and manage vehicles on the phone very handy..

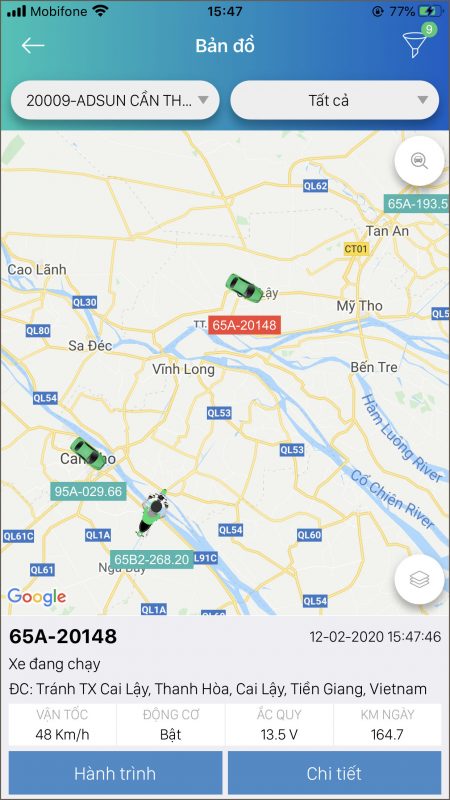

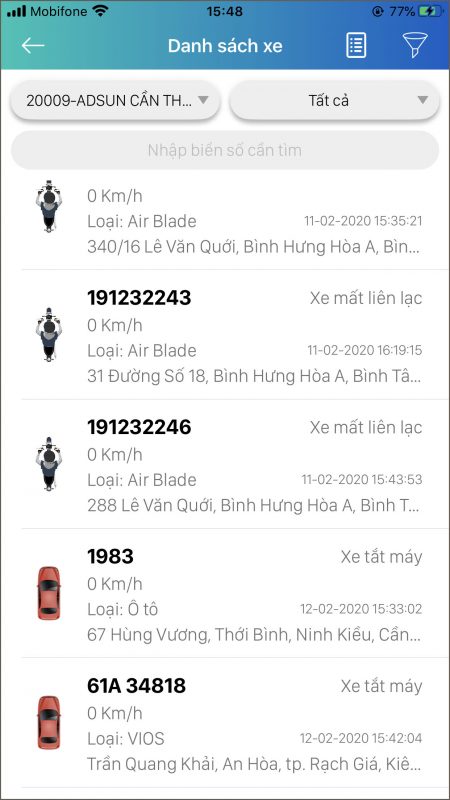

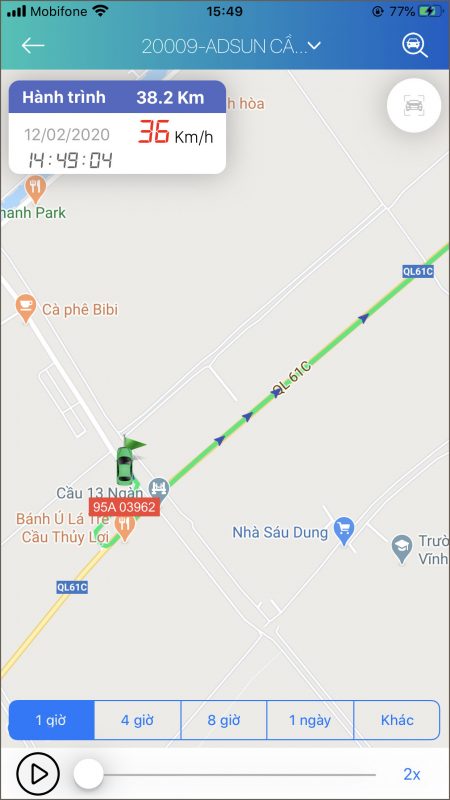

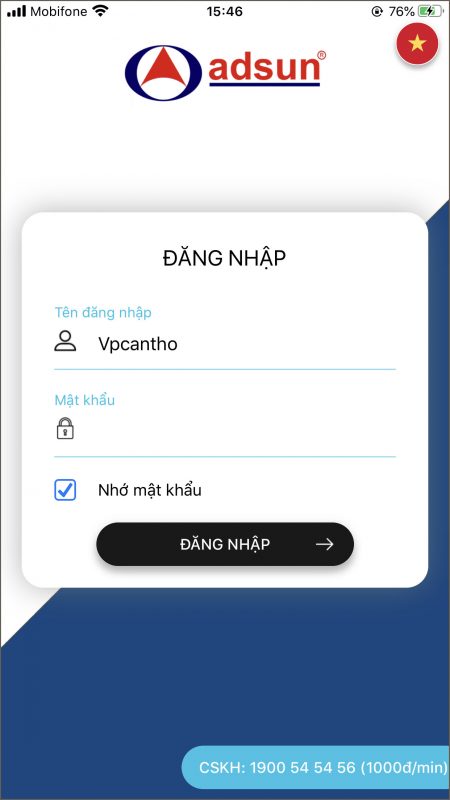

Image of tracking vehicle journey information on a smartphone.

AD-M2-Map-Mob-01
AD-M2-Map-Mob-02
AD-M2-Map-Mob-03
AD-M2-Map-Mob-04
